We are Manufacturer, Supplier, Exporter of Environmental Test Chambers from Pune, Maharashtra, India

Environmental Test Chambers

Environmental Test Chambers

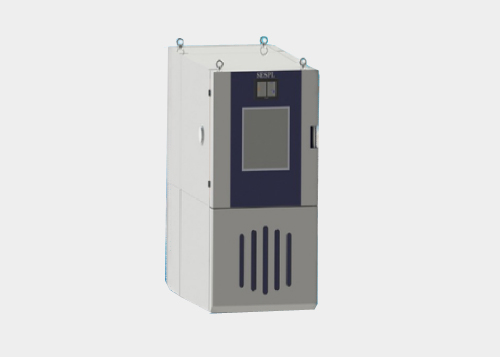

ENVIRONMENTAL TEST CHAMBER

Model	EC 003620	EC 009140	EC 012560	EC 021660	EC 042160	EC 100060
Test Space Volume (L)	36	91	125	216	421	1000
Temperature Test Parameters:
Temperature Range (⁰C)	-20 to 120	-40 to 120	-60 to 120	-60 to 120	-60 to 120	-60 to 120
Temp. Constancy (⁰C)	±1	±1	±1	±1	±1	±1
Temp. Rate (⁰C/min)	1	1	1,3,5	1,3,5	1,3,5	1,3,5
Climate Test Parameters :
Dew point Temp. Range (⁰C)	+4 in (25….85)	+4 in (25….85)	+4 in (25….85)	+4 in (25….85)	+4 in (25….85)	+4 in (25….85)
Humidity Range (%RH)	20 to 98	20 to 98	20 to 98	20 to 98	20 to 98	20 to 98
Humidity Constancy (%RH)	±3	±3	±3	±3	±3	±3
Temp. Constancy (⁰C)	±1	±1	±1	±1	±1	±1
Cooling System	Air Cooled	Air Cooled	Air/Water Cooled	Air/Water Cooled	Air/Water Cooled	Air/Water Cooled
Refrigeration System	Single	Single	Single/Cascade	Single/Cascade	Single/Cascade	Single/Cascade
Compressor	Semi Hermetic	Semi Hermetic	Semi Hermetic	Semi Hermetic	Semi Hermetic	Semi Hermetic
Control System	PLC with HMI	PLC with HMI	PLC with HMI	PLC with HMI	PLC with HMI	PLC with HMI
Test Space Dimension L X D X H (mm)	400X300X300	450X450X450	500X500X500	600X600X600	750X750X750	1000X1000X1000
Customized Option	Yes	Yes	Yes	Yes	Yes	Yes

Request a Quote

HUMIDITY TEST CHAMBER

Model	HC 009115	HC 012515	HC 021615	HC 025342	HC 100015	HC 120042
Test Space Volume (L)	91	125	216	253	1000	1200
Temperature Range (⁰C)	15 to 100	15 to 100	15 to 100	42 to 48	15 to 100	42 to 48
Temp. Constancy (⁰C)	±1	±1	±1	±2	±1	±2
Humidity Range (%RH)	40 to 98	40 to 98	40 to 98	Saturated	40 to 98	Saturated
Humidity Constancy (%RH)	±3	±3	±3	N/A	±3	N/A
Test Space Dimension L X D X H (mm)	450X450X450	500X500X500	600X600X600	750X450X750	1000X1000X1000	1200X1000X1000
Customized Option	Yes	Yes	Yes	Yes	Yes	Yes

Request a Quote

RAIN TEST CHAMBER

Model	RC 0091DJP	RC 0421DJP	RC 1000DJP	RC 1200JP	RC 1728JP	RC 8000JP
Test Space Dimension L X D X H (mm)	450X450X450	750X750X750	1000X1000X1000	1000X1000X1200	1200X1200X1200	2000X2000X2000
Standard	DIN40 050:1993 & DIN EN 60 529 / JIS D0203,JSS 55555,PV-3501			JIS D0203,JSS 55555,PV-3501
Application	IP 1 to 6, IPX9K / JIS D 0203 R1,S1,JSS 55555- 8 Nozzles, PV 3501-1 Arc			JIS D 0203 R1,S1,JSS 55555- 8 Nozzles, PV 3501-1 Arc
Temperature Range (⁰C)	Up to 80 ±5⁰C	Up to 80 ±5⁰C/Ambient	Up to 80 ±5⁰C/Ambient	Ambient	Ambient	Ambient

Request a Quote

DUST TEST CHAMBER

Model	DC 125IJ	DC 216IJD	DC 422IJD	DC 1000IJD	DC 1500ID	DC 1728I
Test Space Dimension L X D X H (mm)	500X500X500	600X600X600	750X750X750	1000X1000X1000	1500X1000X1000	1200X1200X1200
Temperature Range (⁰C)	10⁰Above ambient to 80º	10⁰Above ambient to 80º	10⁰ Above ambient to 80º	10⁰Above Ambient to 80º	10⁰ Above ambient to 80º	10⁰Above ambient to 80º
Temp. Constancy (⁰C)	±4	±4	±4	±4	±4	±4
Standard	IP5X & JSS 55555	IP5X & JSS 55555/D0207	IP5X or IP6X or IP5X & JSS 55555 or D0207		IP5X / IP6X / D0207	IP5X or IP6X

Request a Quote

THERMAL SHOCK CHAMBER

Model	TC 06720	TC 07240	TC 34360	TC 42260	TC 43660	TC 54460
Test Space Volume (L)	67	72	343	422	436	544
Temperature Range (⁰C) +	Hot Zone Ambient to 200	Hot Zone Ambient to 200	Hot Zone Ambient to 200	Hot Zone Ambient to 200	Hot Zone Ambient to 200	Hot Zone Ambient to 200
Temperature Range (⁰C) -	Cold Zone -20 to +50	Cold Zone -40 to +50	Cold Zone -60 to +50	Cold Zone -60 to +50	Cold Zone -60 to +50	Cold Zone -60 to +50
Temp. Constancy (⁰C)	±1	±1	±1	±1	±1	±1
Basket Size L X D X H (mm)	200X200X250	200X200X250	500X500X500	550X550X550	550X550X575	600X600X650
Basket Transfer	˂10 Sec.	˂10 Sec.	˂10 Sec.	˂10 Sec.	˂10 Sec.	˂10 Sec.
Cooling Method	Air Cooled	Air Cooled	Air/Water Cooled	Air/Water Cooled	Air/Water Cooled	Air/Water Cooled
Test Space Dimension L X D X H (mm)	375X375X475	400X400X450	700X700X700	750X750X750	750X750X775	800X800X850

Request a Quote

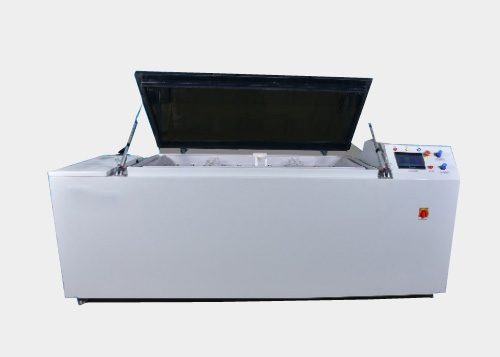

SALT SPRAY TEST CHAMBER

Model	SSC 16235	SSC 29735	SSC 33035	SSC 39635	SSC 49535	SSC 56135
Test Space Volume (L)	162	297	330	396	495	561
Temperature Range (⁰C)	Ambient to 35	Ambient to 35	Ambient to 35	Ambient to 35	Ambient to 35	Ambient to 35
Temp. Constancy (⁰C)	±1	±1	±1	±1	±1	±1
Humidity Range (%RH)	Saturated	Saturated	Saturated	Saturated	Saturated	Saturated
Test Space Dimension L X D X H (mm)	800X450X450	900X600X550	1000X600X550	1200X600X550	1500X600X550	1700X600X550
Standard	ASTM B 117-79	ASTM B 117-79	ASTM B 117-79	ASTM B 117-79	ASTM B 117-79	ASTM B 117-79

Request a Quote

CASS TEST CHAMBER

Model	CC 16250	CC 29750	CC 33050	CC 39650	CC 49550	CC 56150
Test Space Volume (L)	162	297	330	396	495	561
Temperature Range (⁰C)	Ambient to 50	Ambient to 50	Ambient to 50	Ambient to 50	Ambient to 50	Ambient to 50
Temp. Constancy (⁰C)	±2	±2	±2	±2	±2	±2
Humidity Range (%RH)	Saturated	Saturated	Saturated	Saturated	Saturated	Saturated
Test Space Dimension L X D X H (mm)	800X450X450	900X600X550	1000X600X550	1200X600X550	1500X600X550	1700X600X550
Standard	DIN EN ISO 9227 CASS	DIN EN ISO 9227 CASS	DIN EN ISO 9227 CASS	DIN EN ISO 9227 CASS	DIN EN ISO 9227 CASS	DIN EN ISO 9227 CASS

Request a Quote

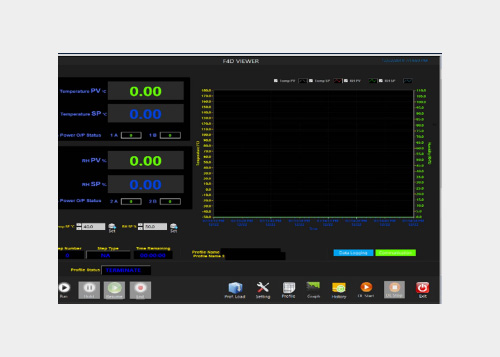

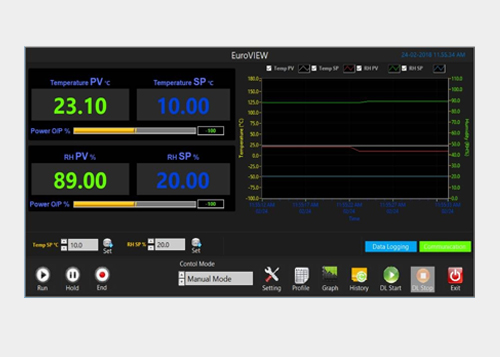

EURO View Chamber Software

EURO View Chamber Software

WATT View Chamber Software

WATT View Chamber Software

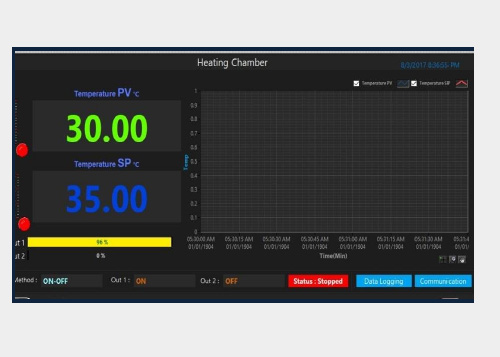

SL- View Chamber Software

SL- View Chamber Software

NI Software Features

Auto Data Log Start Stop
Analog Sensor Scaling
Report in Excel file
Report History Viewer
Auto Data Log Start Stop
Analog Sensor Scaling

Report in Excel file
Report History Viewer
Auto Data Log Start Stop
Analog Sensor Scaling
Report in Excel file
Report History Viewer

×
